Introduction to Dimming

Remotely controlled light dimmers in theatrical and show-lighting applications use an industry-standard 0-10V control signal for controlling the lamp brightness.

0V = lamp off and 10V = fully on.

Any voltage level between these two values represents a proportional lighting level voltage between those values adjusts the average voltage which is applied to the light bulb.  The voltage level from the controller is compared to a ramp signal generated in sync with the mains frequency (50Hz, or 60Hz in US and some other countries).

The lamp circuit is switched on when the levels of the control signal and the ramp are equal.  For instance, if the control is set to halfway, that equality will occur when the ramp signal reaches 50% of its level, switching the TRIAC on.  When the mains cycle falls to zero, the TRIAC will automatically switch off.  Consequently, only half the mains cycle is passed to the lamp by the TRIAC, and the lamp is at half brightness.

Phase Control

The phase control system is almost universally used for AC light dimming.  It is cheap to implement and very reliable, but is inherently noisy.  Proper filtering can reduce the noise to acceptable levels, and 'lighting buzz' can be kept to a minimum with proper cabling.  Phase control works by switching the AC on and off during a cycle.  TRIACs are easily turned on, but to turn them off is not as simple - the AC waveform solves this problem for us by providing a 'zero crossing' every half cycle, where the applied voltage changes from positive to negative or vice versa.  Since a TRIAC cannot remain in a conducting state with no current through it, it will turn off by itself.  All we have to worry about is turning it on.

The diagram below shows the load waveform for three different triggering times (after the zero crossing).  The first (in red) was triggered 1ms after the zero crossing, the second (green) at 5ms, and the last (blue) at 8ms.  As the delay is increased, the available power is reduced.  The ramp generator in the next section allows the dimmer module to be triggered anywhere between immediately after the zero crossing (full power) down to just before the next zero crossing (minimum power).

phase control

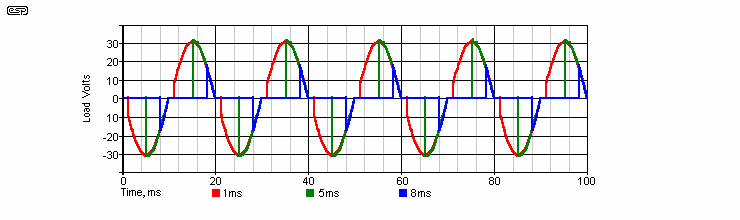

Phase Control Waveforms

Because the mains waveform is sinusoidal, the power is not linear with increasing phase angle.  The table below shows the relative power levels, using 1ms delay (18° of the half cycle) increments.

Delay (ms)PhaseRelative Power
Load Power Vs. Phase Angle (50Hz)

This, coupled with the eye's sensitivity and the inherent non-linearity of incandescent lamps, is the reason for implementing the 'S' curve shown on the channel fader page.  As you can see, there is no great problem if a dimmer circuit delays the switching by a small amount.  Even 2ms (for 50Hz) will reduce the maximum power by under 4%.  This is negligible.

Note that the phase angle works for 50Hz and 60Hz equally, but the delay (in milliseconds) does not.  For 60Hz, you would need to increment the delay by 0.833ms for each 1ms step shown.

Ramp generator (Updated Aug 16)

This circuit really is the guts of the system.  This is where all the synchronisation takes place and produces the phase controlled switching to the TRIAC output stages.  Electrical noise is caused by things switching on at random points on the mains cycle.  We've all heard the dreadful sounds a refrigerator can make through a radio when it switches on and off.  Random switching occurs in theatrical or musical environments, and if all that interference broke through the sound equipment - well, the lighting guy would be toast! Like all dimmers, these are inherently noisy, so filter circuitry has been added to ensure that the system does not create excessive electrical noise.  The filter shown in the power control section may not be sufficient though, and you may need to add extra filtering (or use commercial in-line filters).

Figure 9

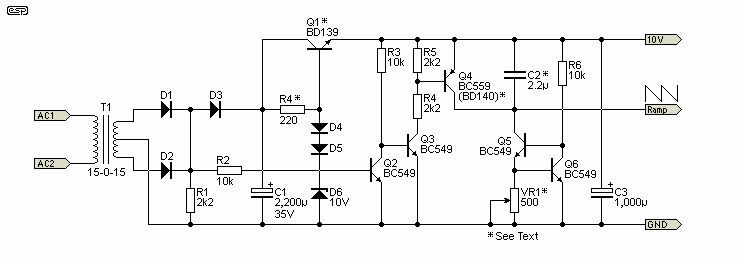

Figure 9 - Ramp Generator

Resistor R1 should be a minimum of 1/2W, R4 must be 1W, and all others can be 1/4W.  Capacitors should be rated at a minimum of 25V, but 35V is better for C1.  All diodes (other than Zeners) should be 1N4004 or equivalent.  Q2 and the rectifier system shown is the heart of the ramp generator - it forms a zero crossing detector that outputs a short pulse (about 550µs) as the mains waveform passes through zero volts.  The output pulse is amplified further by Q3, and in turn switches on Q4 to discharge the timing capacitor (C2).

The 10V supply will actually be closer to 10.7V with the circuit as shown.  This is deliberate, because there are diodes in series with the outputs of all faders, switches, etc.  Since these diodes all have a nominal drop of 0.7V, the actual control voltage will be 0-10V as designed.  If the reference voltage really was exactly 10V, the dimmers would be unable to reach full brightness.  Regardless of the actual voltage, it is referred to as the 10V supply in all cases.

The 10V supply has been upgraded to allow the use of the extra resistors (to provide the 'S' curve) on the faders, and for the additional current draw of the revised chaser circuit (incorporating a level control).  You can use a better regulator if you wish.  An LM317 is easily adapted, and the circuit has been changed to use a 15-0-15V transformer so there will be enough voltage across the IC for it to regulate properly.

Since the load will be over 60mA, the original circuit would have been unable to supply the current needed.  The supply uses a very simple series pass transistor regulator, and it will be more than adequate for the current drawn by the 10V circuitry.  This will easily power the modified fader arrangement (as well as the switch LEDs) with current to spare.  The BD139 transistor (Q1) will need a small heatsink - a piece of aluminium 50mm square (or a small commercial heatsink) should be quite sufficient, although something bigger will not hurt a bit.

ramp waveform

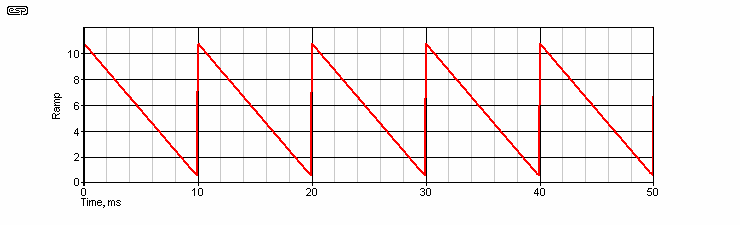

Ramp Waveform

The above shows how a correctly adjusted ramp waveform will appear on an oscilloscope (50 Hz mains signal is shown - ramp frequency is double the mains frequency).  There is no easy way to adjust the circuit without an oscilloscope, but a PC based sampler using the sound card will work fine.  You must use an attenuator to make sure that the maximum input voltage of the sound card is not exceeded.  If you can't figure out how to do this, then I suggest that you are too inexperienced to attempt this project.

This circuitry produces reliable and accurate switching control and synchronisation for the power stages.  The circuit generates a 100Hz (or 120Hz for 60Hz countries) ramp signal which is synchronised to the incoming mains voltage.  The ramp signal starts at 10V and goes linearly down to 0.7V in 10 milliseconds (8.33 ms for 60 Hz mains), and repeats with each mains half-cycle.  The voltage returns to 10.7V at each mains voltage zero crossing when C2 is discharged by Q4.  Feel free to use a BD140 for Q4, because the discharge current is fairly high (albeit brief).

The 500 ohm trimpot is used to adjust the ramp so it has the best possible 10-0V swing.  The 10V level is defined by the circuit, but the zero volt level is dependent on the exact value of C2, and the current drawn by the current sink (Q5 and Q6) - hence the need for adjustment.  Adjusting the trimpot sets the capacitor's charge current, and with a 2.2µF cap as shown the charge current will be 2.2mA.  You must use a polyester cap for C2, as it will be much more stable over time than an electrolytic.  When the ramp is calibrated using VR1, make sure that the dimmer units are attached (they don't need the mains connections).  Because each dimmer module has a resistor to prevent having an open input to the comparator, these load the ramp circuit and change its calibration.

A 10V input signal (from a fader or other source) triggers the TRIAC at the very beginning of the waveform, so full brilliance is achieved.  At zero volts, the TRIAC is not triggered at all, so the lamp(s) are off.  At intermediate levels, the TRIAC triggers somewhere between the beginning and end of the waveform - thus at 5V input, the TRIAC triggers at exactly half way between the AC zero crossing points, so 1/2 the normal sinewave is applied giving about 1/2 brightness - this is not strictly true since our eyes have a logarithmic response, but it works well enough in practice.  The same principle is used for all dimmers, regardless of size or purpose.

Power Supply

The power supply is quite conventional, and is shown in Figure 9.  A standard full wave rectifier and a positive and negative regulator supply power to all parts of the circuit.  The supply is mounted in the Dim-Rak cabinet, along with the ramp generator and the eight modular dimmer circuits.

Figure 10

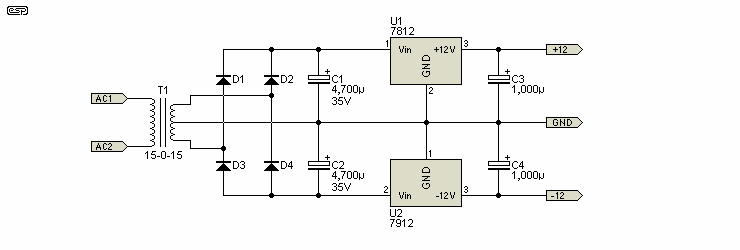

Figure 10 - Power Supply

While a separate transformer can be used, there is no reason to duplicate it.  If a separate transformer is used, it must be rated at least 25VA, and all capacitors should be 25V.  Heatsinks are suggested for the regulators, to ensure the coolest running (which translates to longer life).  A transformer used to power both the ramp generator and power supply should be rated for at least 50VA (a minimum of 2A for each winding).

In many cases, it may be more convenient to have a separate power supply in the console, which saves wiring and ensures that the voltage available to the faders is the required 10.7V and there's no voltage drop across the ±12V leads.  Essentially, the console requires both the +10.7V and ±12V supplies, but there's no requirement to duplicate the ramp generator because the ramp signal is not used in any of the console circuits.

Dimmer Unit

The dimmer unit is shown in Figure 10.  Each dimmer has a TL071, µA741 or similar opamp, which works as a comparator.  The output will go high (+10V or thereabouts) when the ramp signal is lower than the signal from the console.  For example, if the console's output voltage is 5V, the output of U1 remains low until the ramp voltage is just below 5V.  The output then swings high, and activates the opto-isolator (OP1) and turns on the TRIAC.  The lamp will receive the second half of each mains half cycle, because the TRIAC is off for the first half.  If this doesn't make sense, refer back to the above section on phase control.

The heart of the circuit is really the opto-isolator IC, the MOC3020.  This provides the trigger signal to the TRIAC switch, and most importantly it provides essential isolation between the mains and the control circuitry.  These devices are rated for 7500V isolation, and it is imperative that no tracks are run between the pins of the IC, or safety will be seriously compromised.

One thing you will notice, especially using high wattage globes, is 'filament sing'.  This is not a fault with the dimmer.  It occurs when the filament in the globe vibrates in sync with the chopped mains waveform being sent to it from the dimmers.  Use of a large value inductor (choke) in series with the load can reduce filament sing and EMI - see below for more details.

Figure 11

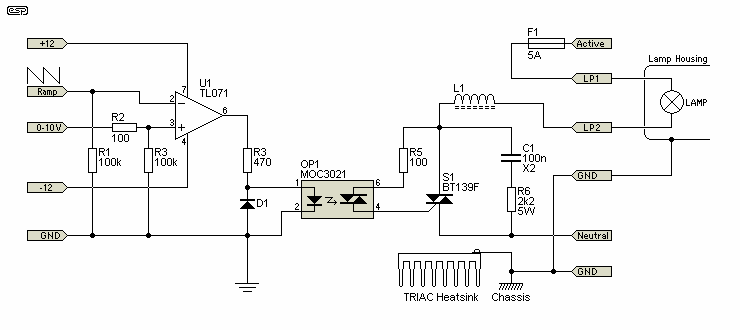

Figure 11 - Dimmer Circuit

D1 is a 1N4148 or 1N914.  R5 should be 1W - not for the power dissipation, but to ensure an adequate voltage rating.  R6 needs to be a 5W wirewound resistor, because instantaneous peak dissipation will be rather high.  The TRIACs must be isolated from the heatsink (to a standard suitable for mains), and the heatsink must be securely bonded to the chassis.  This is critical for electrical safety, and all work at this level must be to the highest possible standards.

There is a very remote possibility that sometimes, the TRIAC may not turn off properly.  I've not heard of this happening for anyone who has built this circuit, but it is theoretically possible under some conditions.  If you have an issue with TRIACs that won't turn off reliably, just add a pair of diodes (D2 & D3) in series with the MOC3021 as shown in Figure 11A.

Figure 11a

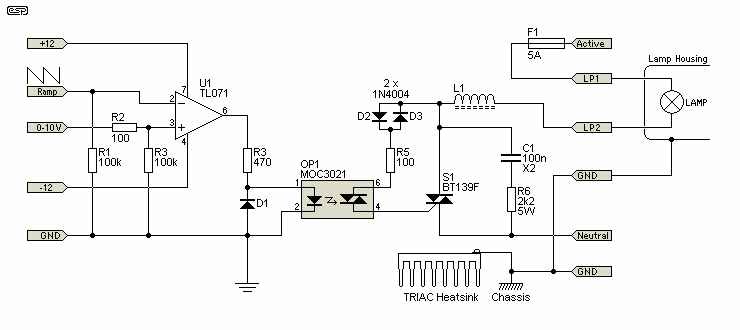

Figure 11A - Modified Dimmer Circuit

These diodes reduce the voltage across the light-activated switch in the optocoupler.  The reason you might need this is simply because the MOC30xx devices only need around 100uA at 1V to remain on continuously.  Any inductance in the lighting circuit might cause enough phase shift to prevent the MOC from turning off reliably.  It's unlikely that you will ever need it, but the two diodes add negligible cost.

Eight dimmers are needed to make one 8-channel Dim-Rak.  The terminal marked '0-10V' is the input from the faders, S2L unit or chaser.  With this unit, it is absolutely essential that all mains wiring is fully protected against accidental contact.  The TRIAC (S1) must be on a heatsink, and great care is needed to ensure that the unit is completely safe.  If the suggested BF139F TRIAC is used, it has an insulated tab, and may be mounted directly to the heatsink without the need for mica washers.  This makes a much safer installation than non insulated devices.  If non-insulated TRIACs are used, the integrity of the insulation is paramount.  Insulation should be checked with a 1000V insulation tester - any resistance less than infinity on the meter is too low! Remember that heatsink compound must be used, and every care is needed to ensure the final assembly is completely safe.

Make sure that the TRIAC leads cannot touch the heatsink under any circumstances, including damage, a slipped meter probe or anything else.  I suggest that suitable insulating material be placed below the TRIAC leads, preferably screwed to the heatsink.  Don't rely on adhesive, because it may 'let go' if the heatsink gets too hot.

You might consider the use of a fan to cool the TRIAC heatsinks and inductors, but make sure there is a filter in place so a build-up of dust or other matter can't create a short.  If a fan is used, it must blow air onto the parts to be cooled.  A fan that sucks air across a heatsink also sucks at keeping it cool!

The case and heatsinks must be earthed via a 3-pin mains plug, and all mains voltage tracks and wiring must be kept a minimum of 5mm from the low voltage circuits.  The inductor (L1) needs to be a mains rated interference suppression type.  These may be available from electrical installation suppliers, specialist inductor suppliers, or you might have to make your own.

The fast turn-on time of the TRIAC will result in the generation of RFI which may interfere with radio and/or TV reception.  This can be reduced by using an RFI filter.  The filter shown is an inductor (typically 100 µH minimum) in series with the TRIAC, and a snubber network (0.1 µF in series with 2.2k 5W) in parallel with the TRIAC.  An additional (mains rated) capacitor can also be used directly across the Active and Neutral and/or LP1 and LP2 terminals.  The snubber network causes a ring-wave of current through the TRIAC at turn on time and the filter inductor is selected for resonance at any frequency above the limit of human hearing but below the start of the AM broadcast band for maximum harmonic attenuation.  In addition, it is important that the filter inductor be non-saturating to prevent di/dt * damage to the TRIAC.

* di/dt - delta (change) in current versus time.

To make these inductors, try about 10 turns of insulated wire wound on a powdered iron toroid.  Do not use a high permeability core such as ferrite or steel, as these will saturate and may damage the TRIAC.  Make sure that the inductors are firmly mounted, and that accidental contact is not possible while the system is live.  Larger chokes may be used if desired, and there are several manufacturers who make dimmer chokes that are designed for the purpose.

Many professional dimmers use massive inductors.  Some are so large that they dominate the chassis, and this is because the inductance is as high as practicable to limit the rise time of the waveform applied to the load.  Various claims can be found on the Net as to the optimum risetime, but in reality it will vary depending on the load.  A 1kW dimmer with a quoted risetime of 400µs will have a risetime of 200µs if the load is only 500W.  To achieve this, the inductor needs to be about 10mH for a 230V system or 5mH for 120V - that is a big inductor, and it must also have low resistance.

The quoted risetime can vary from 300µs to 800µs or more, but as risetime is increased, so too are inductor losses.  In some cases, dimmer chokes may be fan cooled to increase their ratings.  All power lost in the inductor windings is power that never gets to the lamps, so overall efficiency is reduced.

Circuit Layout

The power control section is modular: the power supply and ramp generator on one printed circuit board, the eight TRIACs on individual PCBs.  This was done because if anything is going to go wrong, it is usually a TRIAC that blows.  If possible, arrange for the boards to plug onto the output connectors with spade connectors so that they could be replaced quickly and easily.  You are free to build this section to suit yourself, but make sure that you build it so that repairs will be as easy as possible.  Also, make sure that all mains wiring regulations for your country are followed to the letter.

Although a 10A fuse is shown on the incoming mains, you can use a circuit breaker if you wish.  The breaker should be rated for no more than 10A, and it should be a thermal-magnetic type so that it will trip instantly with a fault condition.  Use of a 'delayed' (D-Curve) breaker will allow for short-term overloads without tripping.  For example, if all lamps are switched to full power from cold, there will be a fairly high inrush current that can (and should be) accommodated without tripping the breaker.

figure 12

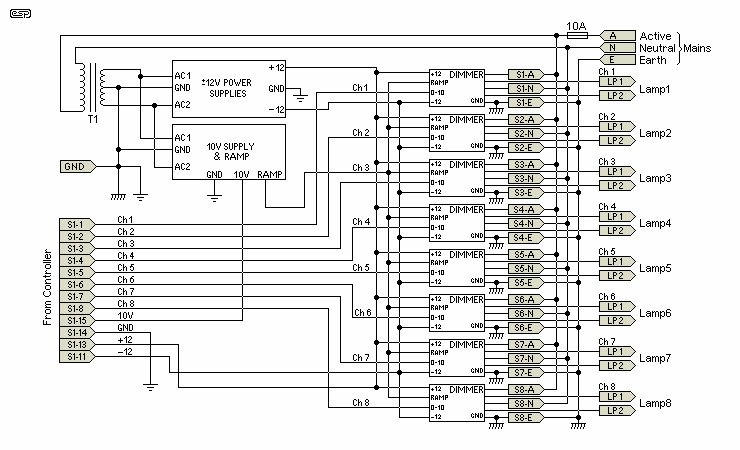

Figure 12 - DIM-RAK 8 Internal Wiring

Each DIM-RAK 8 unit will be wired identically.  This means that any dimmer unit can be used with any console sub-section, without problems of incompatibility.  The selection of output sockets is naturally determined by those that are in use in your country.  It is probably best to use standard wall outlet type sockets, so that off-the-shelf extension leads can be used for wiring to the lamps.  This makes it less likely that you will ever be caught out with a faulty or missing lead.

The master (mains) switch (if desired) is not shown, but the mains input and main fuse are included.  Use a circuit breaker if preferred.  If you need a schematic to show how they are wired, then you don't know enough about electrical wiring to tackle the job.  In this case, it is recommended that you find someone qualified to carefully check your work, and preferably perform all mains wiring for you.
