 Elliott Sound Products Project 54

Low Power FM Transmitter

© March 2000, Rod Elliott (ESP)


This article should satisfy those who might want to build a low power FM transmitter.  It is designed to use an input from another sound source (such as a guitar or microphone), and transmits on the commercial FM band - it is actually has surprisingly good range, so make sure that you don't use it to transmit anything sensitive - it could easily be picked up from several hundred metres away.  I suggest that the antenna should be deliberately reduced from the optimum length (typically between 700 to 800mm - 1/4 wavelength) to reduce the ERP (effective radiated power).  At least in theory, it will be capable of up to 50mW into a matched 50 ohm antenna - probably far more than you need!

The FM band is 88 to 108MHz, and although it is getting fairly crowded nearly everywhere, you should still be able to find a blank spot on the dial.

NOTE: A few people have had trouble with this circuit.  The biggest problem is not knowing if it is even oscillating, since the frequency is outside the range of most simple oscilloscopes.  See Project 74 for a simple RF probe that will (or should) tell you that you have a useful signal at the antenna.  If so, then you know it oscillates, and just have to find out at what frequency.  This may require the use of an RF frequency counter if you cannot locate the signal on the FM band.

Please Note
Like all transmitters, you must check with local regulations.  Transmitter power is quite low (I don't have the equipment to measure it though), but despite this is may be in violation of the regulations where you live.  I don't have the time (or space) to even try to list all regulations that may exist in various parts of the world, but I have been advised that in Germany the limit is 50nW ERP.  It's likely to be similar in other EU countries.  The ERP of any transmitter is dependent on the transmitter output and the effectiveness (or otherwise) of the antenna.  Since you have been warned, please don't complain if you get caught using this project.

A few people have had trouble with this circuit.  The biggest problem is not knowing if it is even oscillating, since the frequency is outside the range of most simple oscilloscopes.  See Project 74 for a simple RF probe that will (or should) tell you that you have a useful signal at the antenna.  If so, then you know it oscillates, and just have to find out at what frequency.  This may require the use of an RF frequency counter if you cannot locate the signal on the FM band.

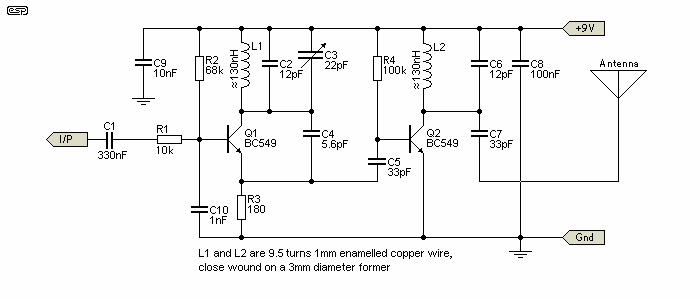

The circuit of the transmitter is shown in Figure 1, and as you can see it is quite simple.  The first stage is the oscillator, and is tuned with the variable capacitor.  Select an unused frequency, and carefully adjust C3 until the background noise stops (you have to disable the FM receiver's mute circuit to hear this).

fig 1
Figure 1 - Low Power FM Transmitter

Because the trimmer cap is very sensitive, make the final frequency adjustment on the receiver.  When assembling the circuit, make sure the rotor of C3 is connected to the +9V supply.  This ensures that there will be minimal frequency disturbance when the screwdriver touches the adjustment shaft.  You can use a small piece of non copper-clad circuit board to make a screwdriver - this will not alter the frequency.

The frequency stability is improved considerably by adding a capacitor from the base of Q1 to ground.  This ensures that the transistor operates in true common base at RF.  A value of 1nF (ceramic) as shown is suitable, and will also limit the HF response to 15 kHz - this is a benefit for a simple circuit like this, and even commercial FM is usually limited to a 15kHz bandwidth.

Note that the transmitter and other circuitry described is mono - not stereo.  While it would be possible to include the matrix encoder, 38kHz sub-carrier and 19kHz pilot tone, doing so adds considerable complexity and will not be attempted.  If you need this, buy a commercial stereo modulator.


All capacitors must be ceramic (with the exception of C1, see below), with C2 and C6 preferably being N750 (Negative temperature coefficient, 750 parts per million per degree Celsius).  The others should be NP0 types, since temperature correction is not needed (nor is it desirable).  If you cannot get N750 caps, don't worry too much, the frequency stability of the circuit is not that good anyway (as with all simple transmitters).

How It Works

Q1 is the oscillator, and is a somewhat unconventional Colpitts design.  L1 and C3 (in parallel with C2) tunes the circuit to the desired frequency, and the output (from the emitter of Q1) is fed to the buffer and amplifier Q2.  This isolates the antenna from the oscillator giving much better frequency stability, as well as providing considerable extra gain.  L2 and C6 form a tuned collector load, and C7 helps to further isolate the circuit from the antenna, as well as preventing any possibility of short circuits should the antenna contact the grounded metal case that would normally be used for the complete transmitter.

The audio signal applied to the base of Q1 causes the frequency to change, as the transistor's collector current is modulated by the audio.  This provides the frequency modulation (FM) that can be received on any standard FM band receiver.  The audio input must be kept to a maximum of about 100mV, although this will vary somewhat from one unit to the next.  Higher levels will cause the deviation (the maximum frequency shift) to exceed the limits in the receiver - usually ±75kHz.

With the value shown for C1, this limits the lower frequency response to about 50Hz (based only on R1, which is somewhat pessimistic) - if you need to go lower than this, then use a 1uF cap instead, which will allow a response down to at least 15Hz.  C1 may be polyester or Mylar, or a 1uF electrolytic may be used, either bipolar or polarised.  If polarised, the positive terminal must connect to the 10k resistor.

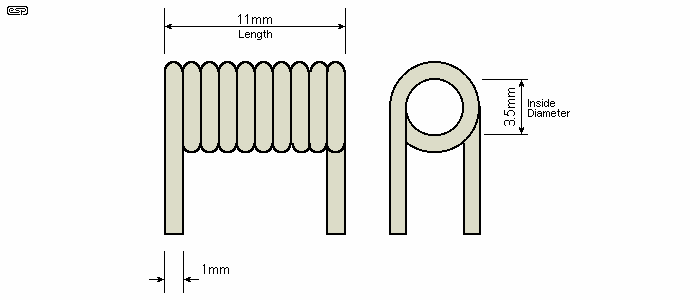

The inductors are nominally 10 turns (actually 9.5) of 1mm diameter enamelled copper wire.  They are close wound on a 3.5mm diameter former, which is removed after the coils are wound.  Carefully scrape away the enamel where the coil ends will go through the board - all the enamel must be removed to ensure good contact.  Figure 2 shows a detail drawing of a coil.  The coils should be mounted about 2mm above the board.

For those still stuck in the dark ages with imperial measurements (  ), 1mm is about 0.04" (0.0394") or 5/127 inch <<chuckle>> - you will have to work out what gauge that is, depending on which wire gauge system you use (there are several).  You can see the benefits of metric already, can't you? To work out the other measurements, 1" = 25.4mm

NOTE: The inductors are critical, and must be wound exactly as described, or the frequency will be wrong.

figure 2
Figure 2 - Detail Of L1 And L2

The nominal (and very approximate) inductance for the coils is about 130nH.  This is calculated according to the formula ...

L = N² × r² / ( ( 228 × r ) + ( 254 × l ))

= 9.5² × 2.25m² /(( 228 × 2.25m) + ( 254 × 11m )) = 0.138µH = 138nH

... where L = inductance in microhenries (µH), N = number of turns, r = average coil radius (2.25mm for the coil as shown), and l = coil length.  All dimensions are in millimetres.

It's worth noting that just about every coil calculator on the Net will give a different answer.  This isn't particularly helpful, and you will almost certainly have to experiment a little to get the coil and its associated capacitance to work at the frequency you need.  You might be able to see the waveform on a scope, but only with a 100MHz model (you might be able to see a little on a 50MHz scope).


It is normal with FM transmission that 'pre-emphasis' is used, and there is a corresponding amount of de-emphasis at the receiver.  There are two standards (of course) - most of the world uses a 50µs time constant, and the US uses 75µs.  These time constants represent a frequency of 3,183Hz and 2,122Hz respectively.  This is the 3dB point of a simple filter that boosts the high frequencies on transmission and cuts the same highs again on reception, restoring the frequency response to normal, and reducing noise.

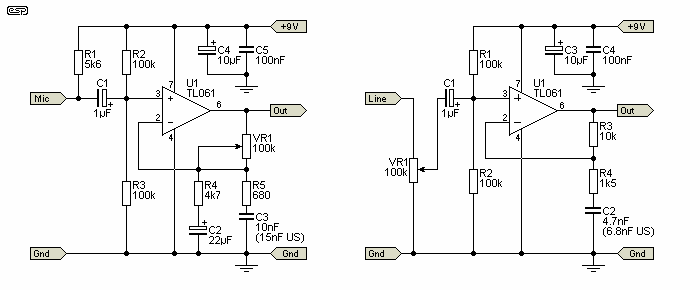

The simple transmitter above does not have this built in, so it can be added to the microphone preamp or line stage buffer circuit.  These are both shown in Figure 3, and are of much higher quality than the standard offerings in most other designs.

fig 3
Figure 3 - Mic And Line Preamps

Rather than a simple single transistor amp, using a TL061 opamp gives much better distortion figures, and a more predictable output impedance to the transmitter.  If you want to use a dynamic microphone, leave out R1 (5.6k) since this is only needed to power an electret mic insert.  The gain control (for either circuit) can be an internal preset, or a normal pot to allow adjustment to the maximum level without distortion with different signal sources.  The 100nF bypass capacitors must be ceramic types, because of the frequency.  Note that although a TL071 might work, they are not designed to operate at the low supply voltage used.  The TL061 is specifically designed for low power operation.

The mic preamp has a maximum gain of 22, giving a microphone sensitivity of around 5mV.  The line preamp has a gain of unity, so maximum input sensitivity is 100mV.

Select the appropriate capacitor value for pre-emphasis as shown in Figure 3 depending on where you live.  The pre-emphasis is not especially accurate, but will be quite good enough for the sorts of uses that a low power FM transmitter will be put to.  Needless to say, this does not include 'bugging' of rooms, as that is illegal almost everywhere.

I would advise that the preamp be in its own small sub-enclosure to prevent RF from entering the opamp input.  This does not need to be anything fancy, and you could even just wrap some insulation around the preamp then just wrap the entire preamp unit in aluminium foil.  Remember to make a good earth connection to the foil, or the shielding will serve no purpose.
