Power Supply for Preamplifiers (Revision A)

© 2005, Rod Elliott - ESP

PCB   Please Note:  PCBs are available for the latest revision of this project.  Click the image for details.

The original version of P05 has been around for a very long time now (since 1999), and there are some worthwhile reasons for the updates.  For the latest version of this project, please see P05 Rev-B.  Although the performance of the original was not lacking in any way, I decided to change to adjustable regulators.  This allows greater flexibility (one can easily make a small variable lab supply with the new version), and the adjustable regulators actually have lower noise.

In addition, the PCB now has a loss of AC detector, making muting circuits much easier (the Aux output can simply drive a relay if you want to), or it provides a useful signal for any other circuits that can benefit from an AC (or loss of AC) detector.

For anyone who feels a burning desire to upgrade their original P05 to the new P05C, the board is (almost) exactly the same size, and has the same mounting hole positions.  The new PCB is a couple of millimetres shorter than the original, and will fit into the same location.

Preamps may in some cases use a simple regulator.  With the supplies taken from the main amp power supply, this can be a problem if the main amp is of very high power.  The supply voltage will be too high for 3-terminal regulator ICs, and they will fail.  This will also be a problem if the main amp is under warranty or you just don't want to fiddle with it.

For these occasions, a simple, high performance supply can be built using an external AC power pack (no mains to worry about, and you don't even need a power lead).  Power packs (wall warts, wall transformers) are available in a variety of voltages, and if you can find a 16V AC version, this is ideal.  With 16V, you can easily get +/-15V DC regulated, using the circuit shown below.  If you cannot find a 16V unit, you can use a 12V version instead, but the regulator resistor networks will have to be changed accordingly.  In fact, the supply may be configured for any voltage from ±2.5V up to ±25V (although 15V is the most practical for opamps).

Alternatively, the supply can be run from a conventional split voltage transformer (e.g. 15-0-15V AC).  It is designed to be as flexible as possible, and to this end, an auxiliary supply is also provided, complete with a 'loss of AC' detector.  This can be used to power a muting relay, with virtually no additional circuitry needed ... other than the relay and a suitable voltage dropping resistor for the coil.  Even the diode is on the PCB.

As always, inclusion of a fuse suitable for the transformer used is highly recommended, and a thermal fuse is a good idea too, since the power transformer will be left on permanently in most installations.  If a Power switch is incorporated in the preamp, this can be a simple low voltage type since no mains voltages are present, and can be in either AC input lead (if you use the single winding transformer option) - there is no need to break both leads with the switch.  Naturally, if you use a standard transformer it is better to switch the mains to conserve power.


Figure 1

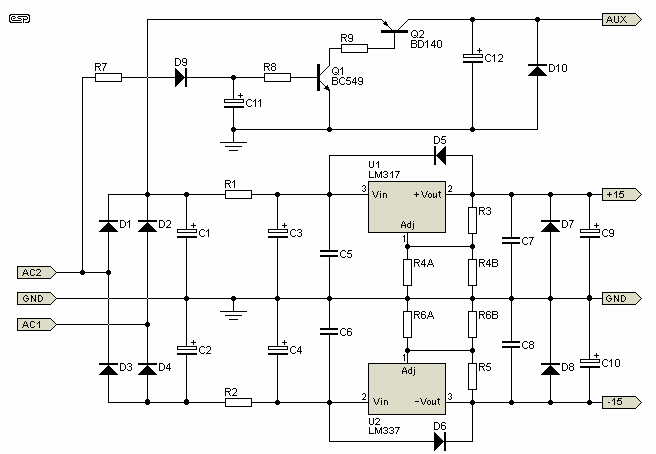

Figure 1 - Preamplifier Power Supply

If a single AC supply is connected between GND and AC2, the rectifier is a 'full-wave voltage doubler' type, and with an input of 16VAC will provide about ±20V DC at a current of up to at least 100mA - this should be enough for the most power-hungry preamp.  All diodes are 1N4001 or similar (100V / 1A minimum rating for all).  (Note that the supply will work, but if you use GND and AC1 for a single AC supply, the loss of AC detector cannot function, as it gets its signal from the AC2 terminal.

If a split AC supply is used (such as 15-0-15V AC), then the transformer centre tap connects to GND, and the two 15V winding ends connect to AC1 and AC2.  Although virtually any transformer of 0.5A or more will work (provided the voltage is correct), there is very little to be gained by using anything more than 30VA (and even that is likely to be overkill).

The 3-terminal regulators must be TO-220 types, and unless your preamp requires lots of current, they will not require a heatsink.

The diodes around the 3-terminal regulators prevent reverse voltages being applied to the regulator chips under any condition.  They are not strictly necessary, but are considered a good idea.  The bypass caps must be close to the IC power leads to prevent oscillation.

Photo of power supply
Photo of Completed Unit

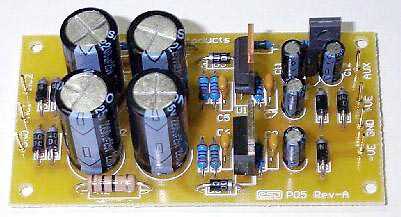

The photo shows the completed PCB, and has no heatsinks for the regulators.  These will not be needed in most cases, but using them will do no harm, either.  Make sure that they are well insulated from each other, or are insulated from the heatsink.

The PCB can be wired to use a single 16V AC supply, or a 15-0-15 AC supply from a conventional power transformer.  Or, if you need to, it may be powered directly from an existing source of DC - make sure that the input voltage is below +/-30V under all operating conditions - this is important.  For this connection, the rectifier diodes must not be used, and the loss of AC detector won't function unless it is connected separately to a source of AC.  This option is recommended for experienced hobbyists only, although the construction guide does have some additional information.

It will be noted that there are no component values shown, other than for the semiconductors.  This information (plus quite a bit more) is available in the construction guide - when (and only when) you purchase the PCB.

As an added bonus, the PCB can be used to implement the little lab supply described in Project 44.  The voltage pots are connected in place of R4 (A & B) and R6 (A & B).  The only thing that you will need to do is add a decent sized heatsink, and in this case a suitable bracket is recommended.  If you only ever plan to use the supply for preamps, the heatsink can even be omitted, although I don't recommend this.

Loss of AC Detector

This function needs a bit of explanation.  There are quite a few circuits (both opamp based and discrete) that insist on making stupid noises, especially as the supply voltage falls away to zero.  The most common are squeaks and whistles, or sometimes rather disconcerting clicks and pops.

Adding a muting relay solves this (and there are a few described in the project pages), but there are no boards available, and they can be irksome to wire up.  Using just the Auxiliary output from the P05A connected to a relay, you have a muting system - note that you will almost certainly need a resistor in series with the relay coil.

Although the circuit activates very quickly when power is applied, it is still just a few milliseconds behind the main supplies.  This time is just enough to prevent the majority of switch-on noises.  When AC power is removed, the Aux output will fall to zero within a few AC cycles, the relay will release, and muting will be activated.  All of this happens well before the voltage has fallen far enough for the attached circuits to make a sound, so any of the silly/annoying noises you used to get will be muted, and will not get through to the power amp.

The Aux output does require a load though - any relay will be more than enough, but if it is used to power some other circuit (such as the P110 remote control), no additional load is needed.  The minimum load should be about 10mA.

Note that the Aux output is not regulated! Taking any switched current from the regulated supply is not a good idea, as it is possible to induce noise into the regulated supply.  This rather negates the whole idea of using a low noise regulated supply in the first place.
