Classic Class-B Schematics


Though these schematics are not for Class-A amplifiers, I thought they might be useful for anyone intending to modify or repair these classic commercial designs.

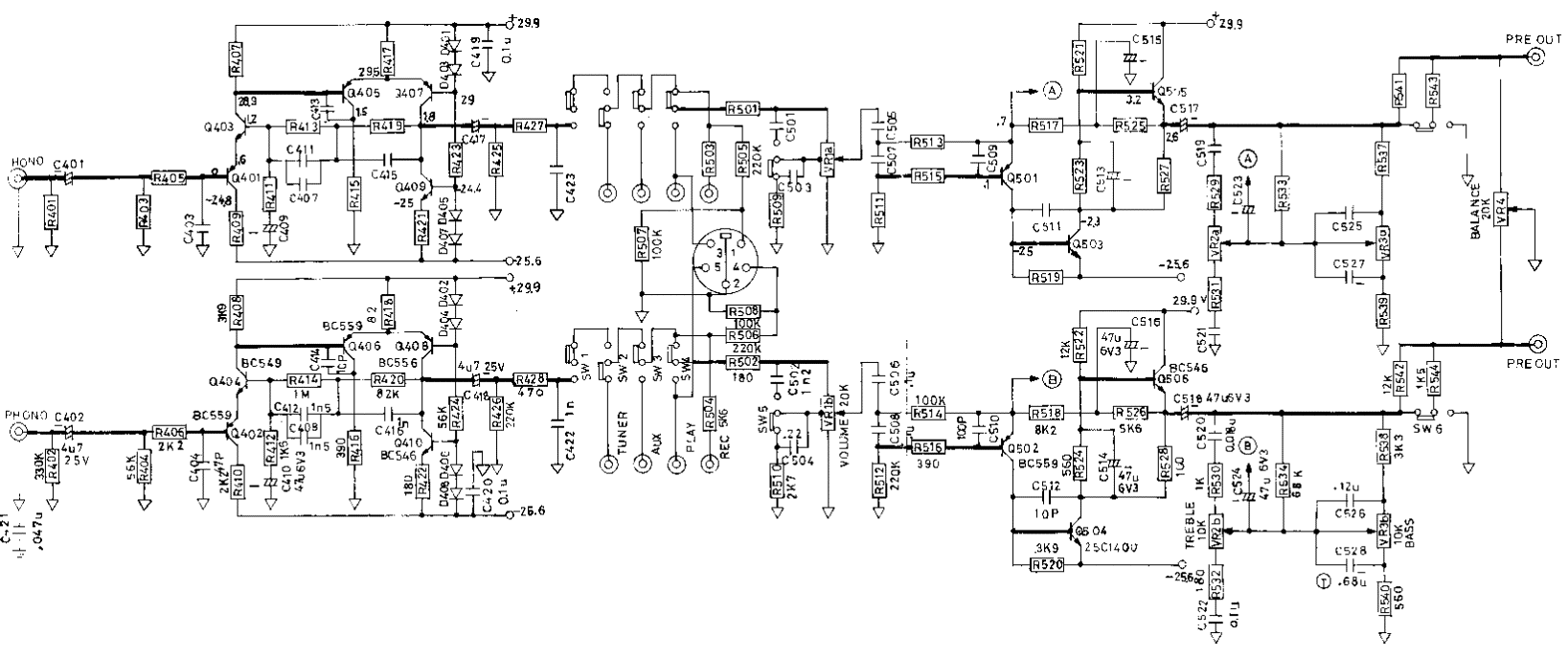

NAD 3020





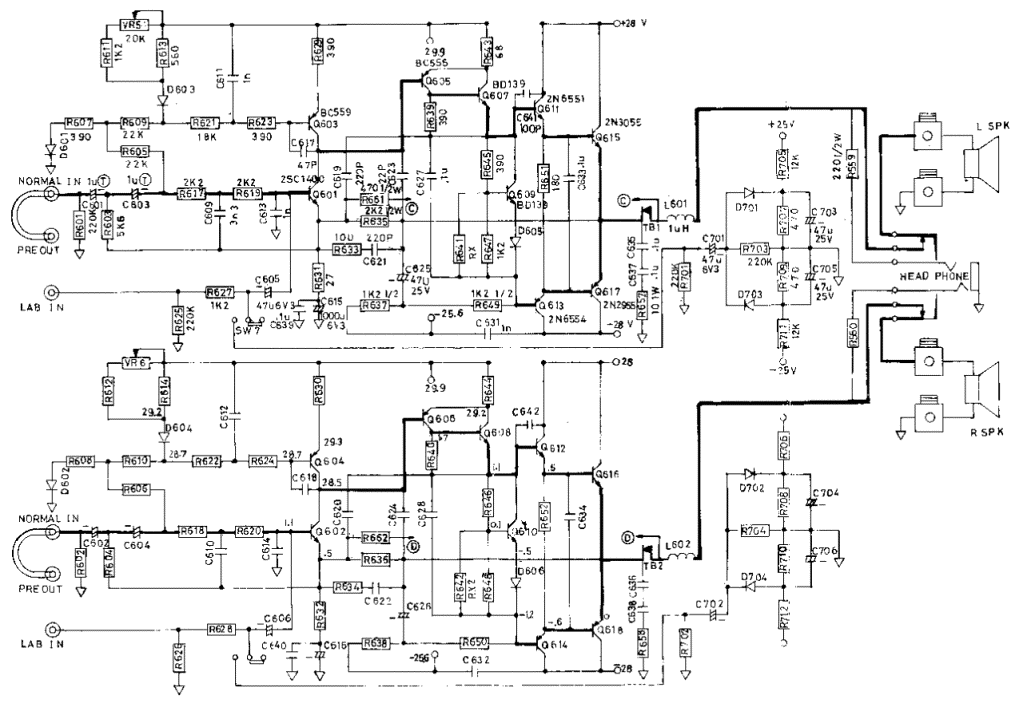

Power Amplifier

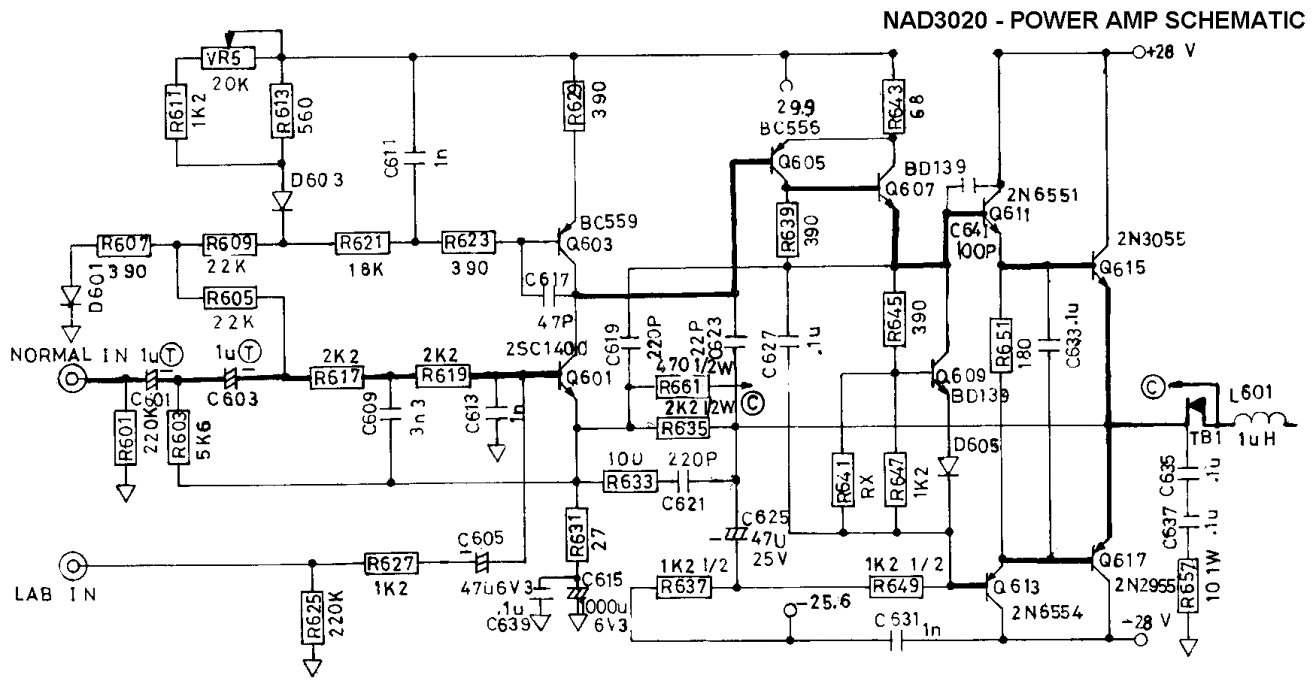

Power Amplifier  (Single channel at a higher resolution)


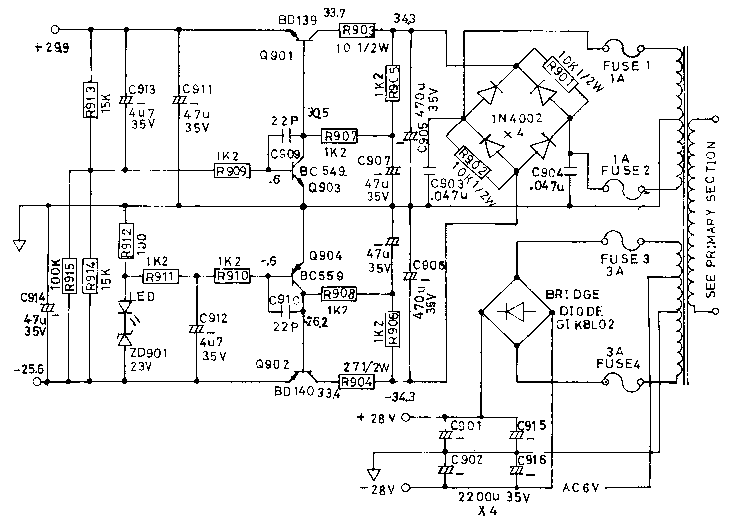

Power Supply


Cyrus 1

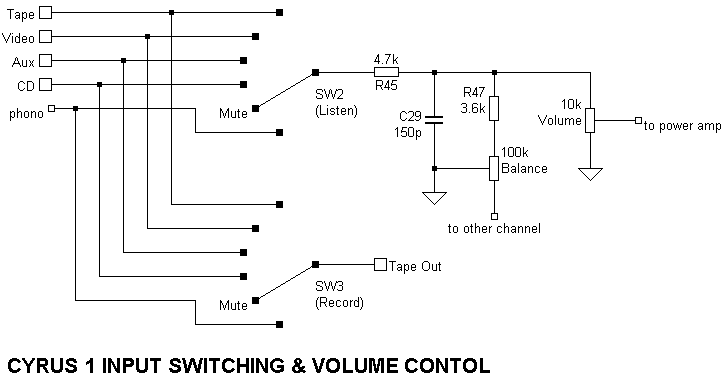

Input Switching & Volume Control

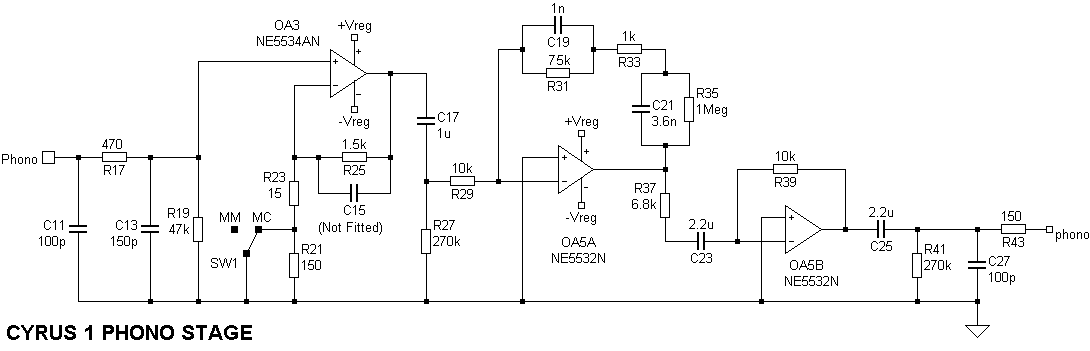

Phono Stage

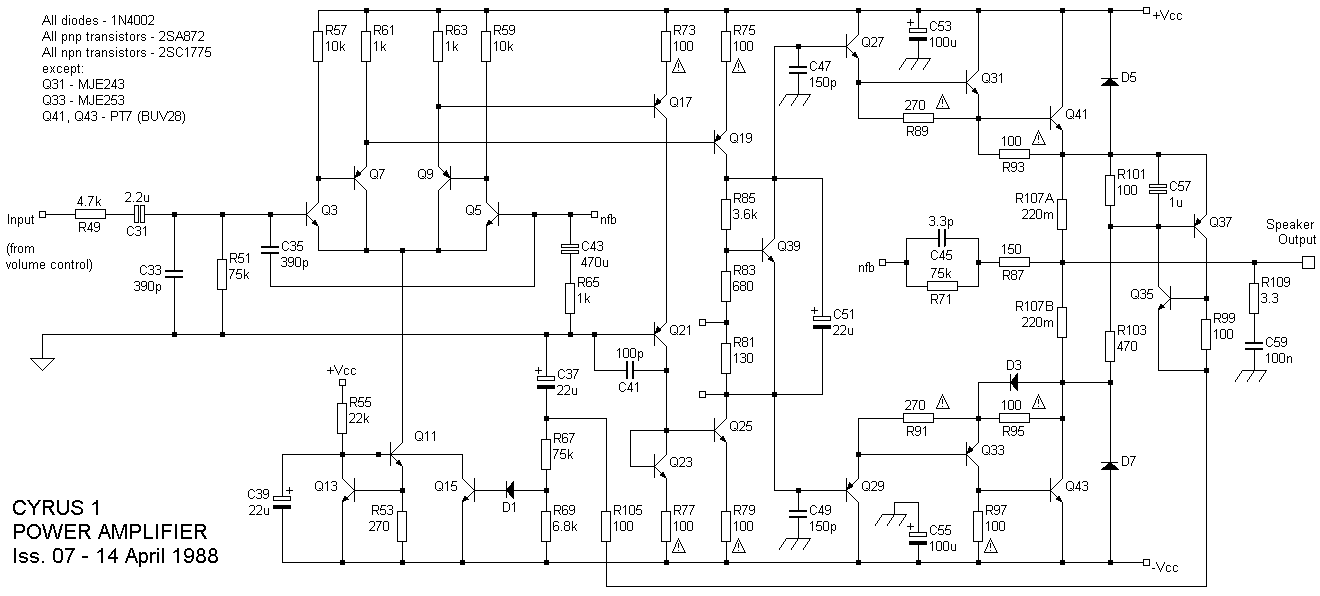

Power Amplifier

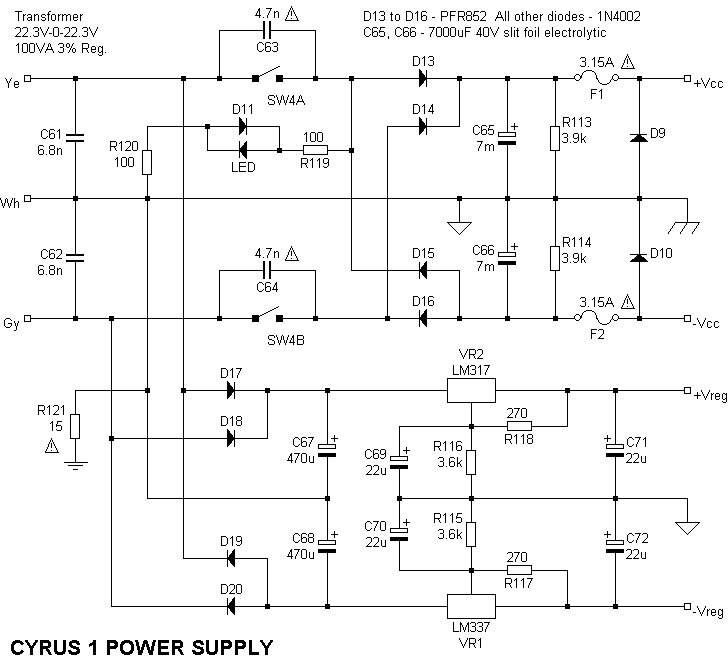

Power Supply

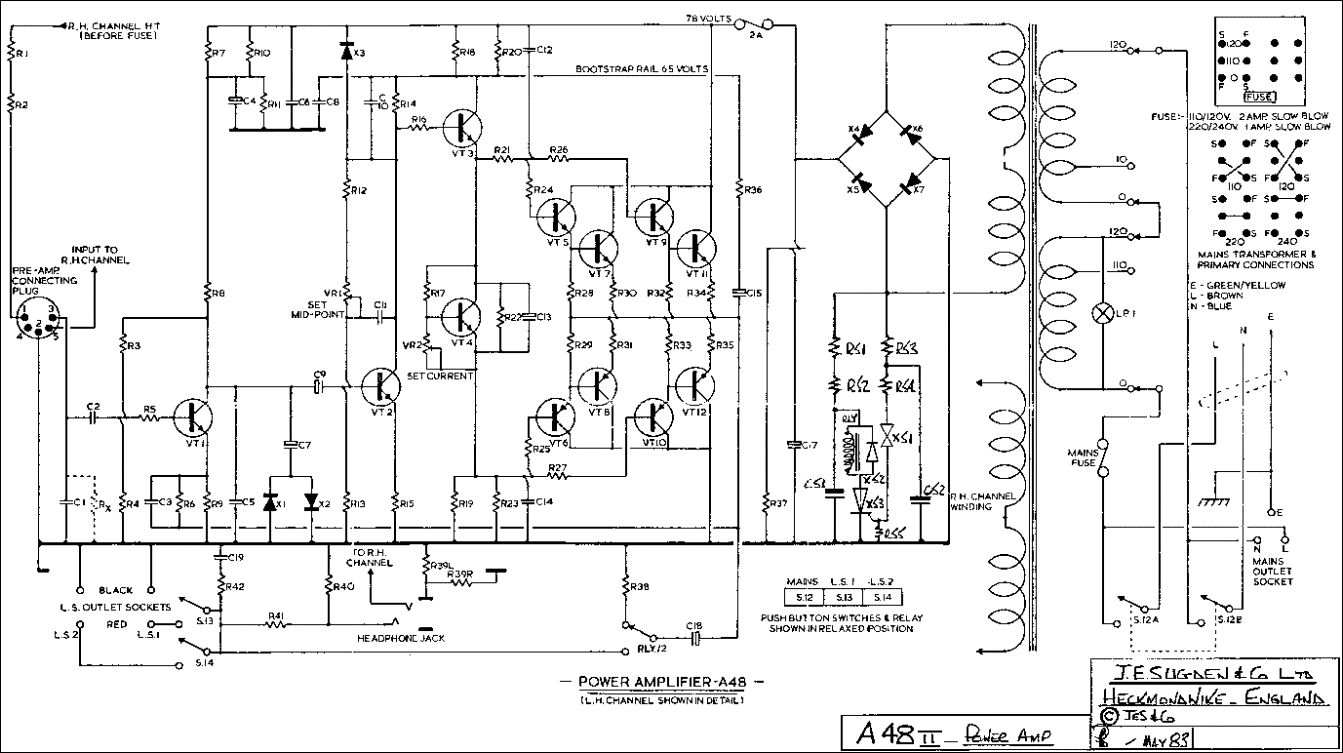

Sugden A48-II

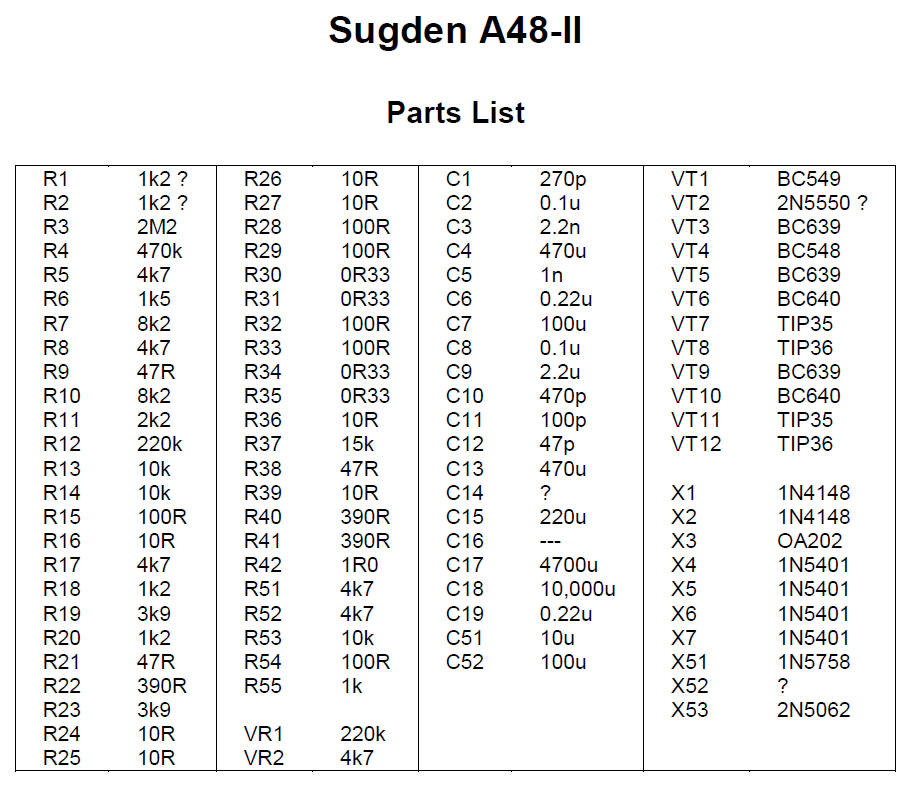

Parts List
